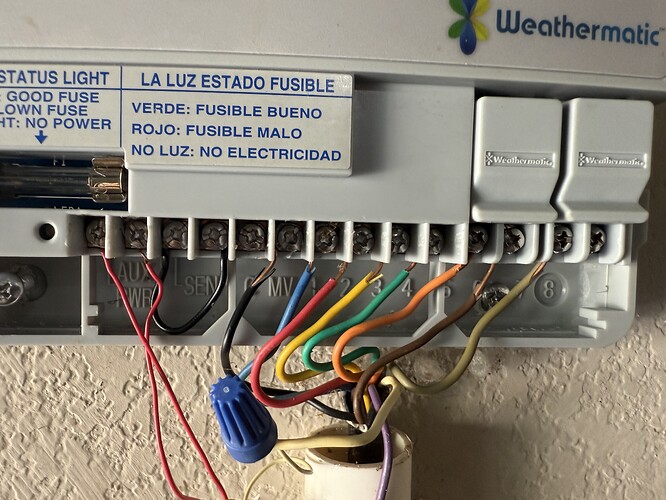

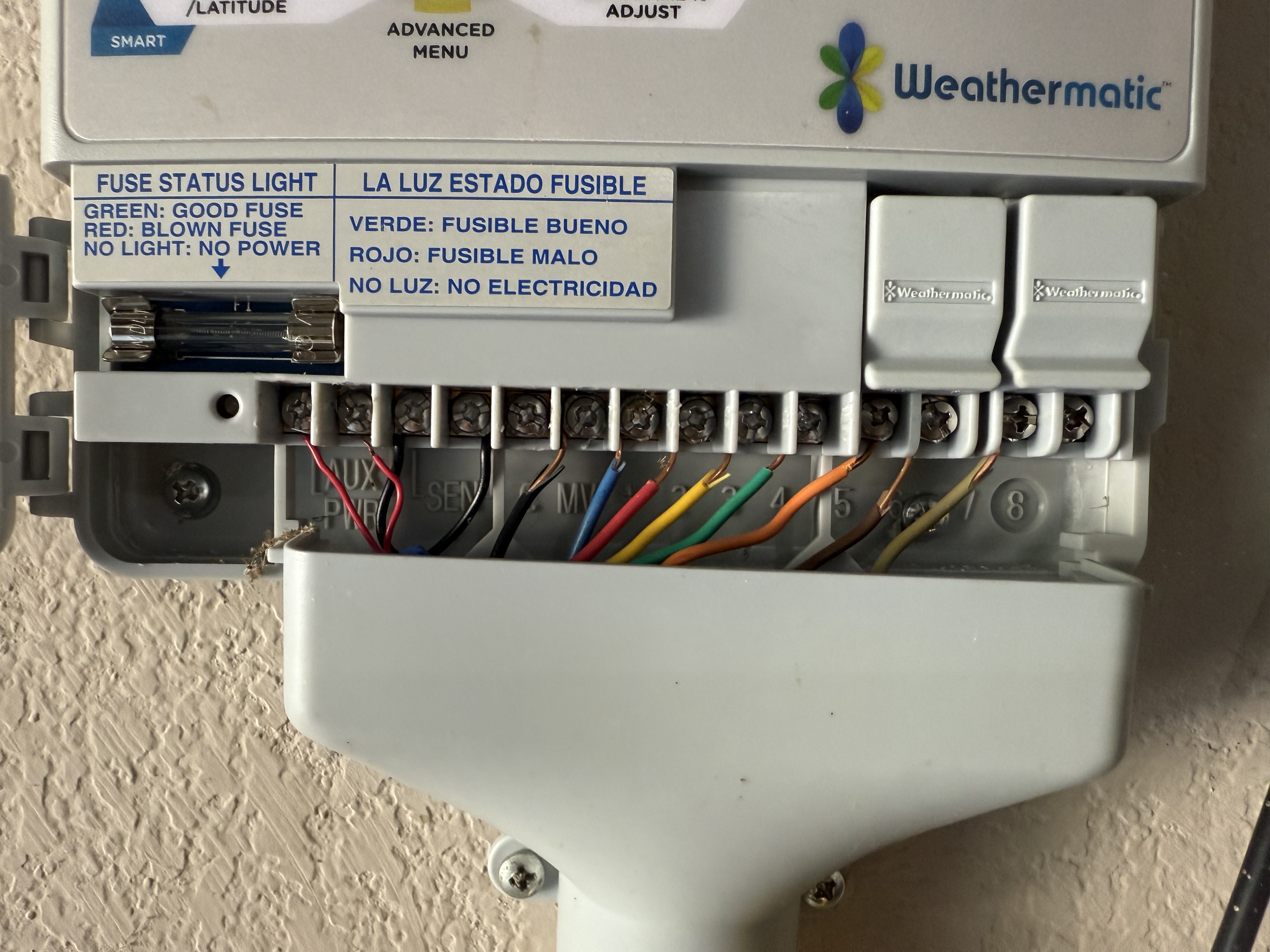

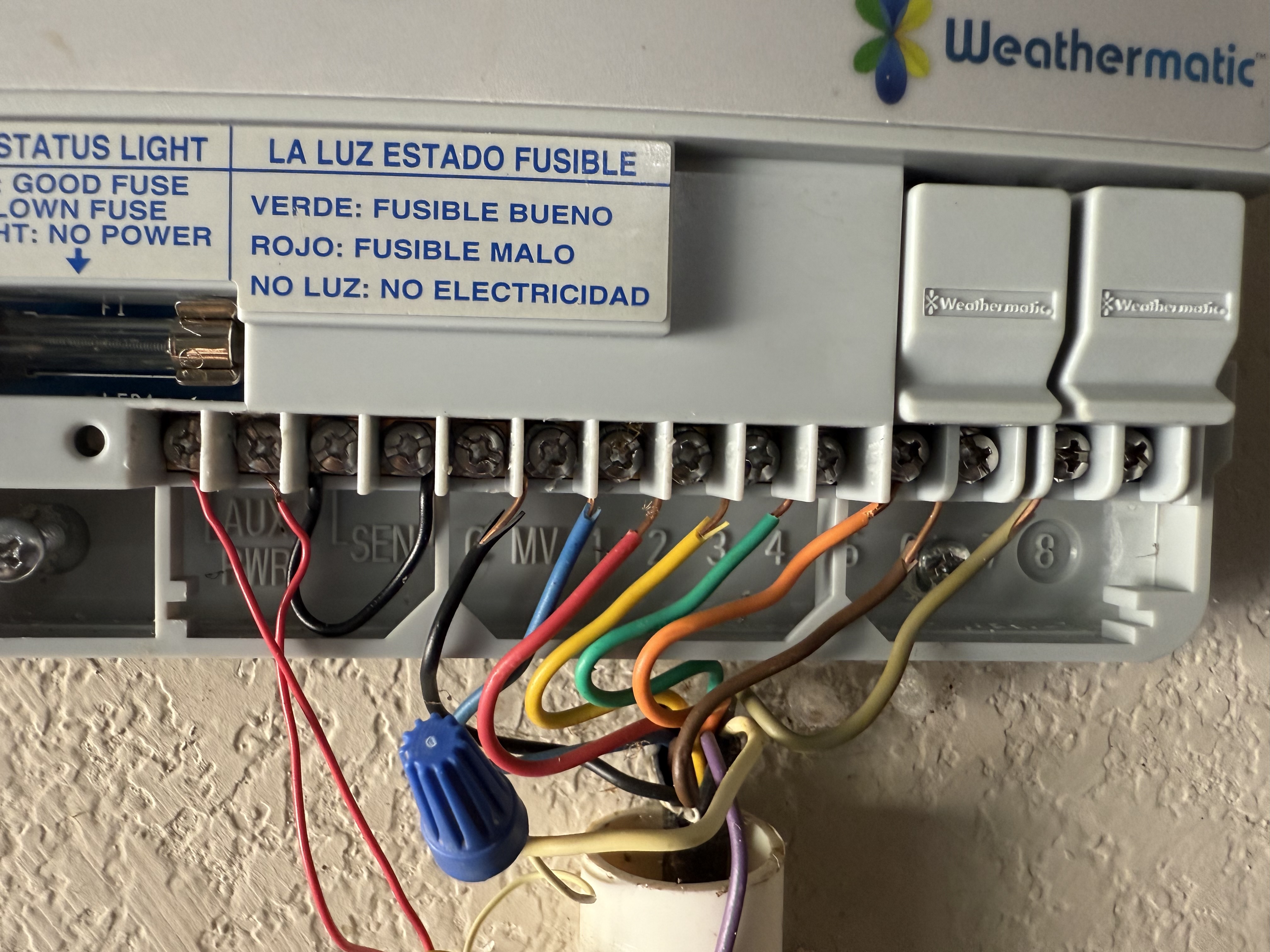

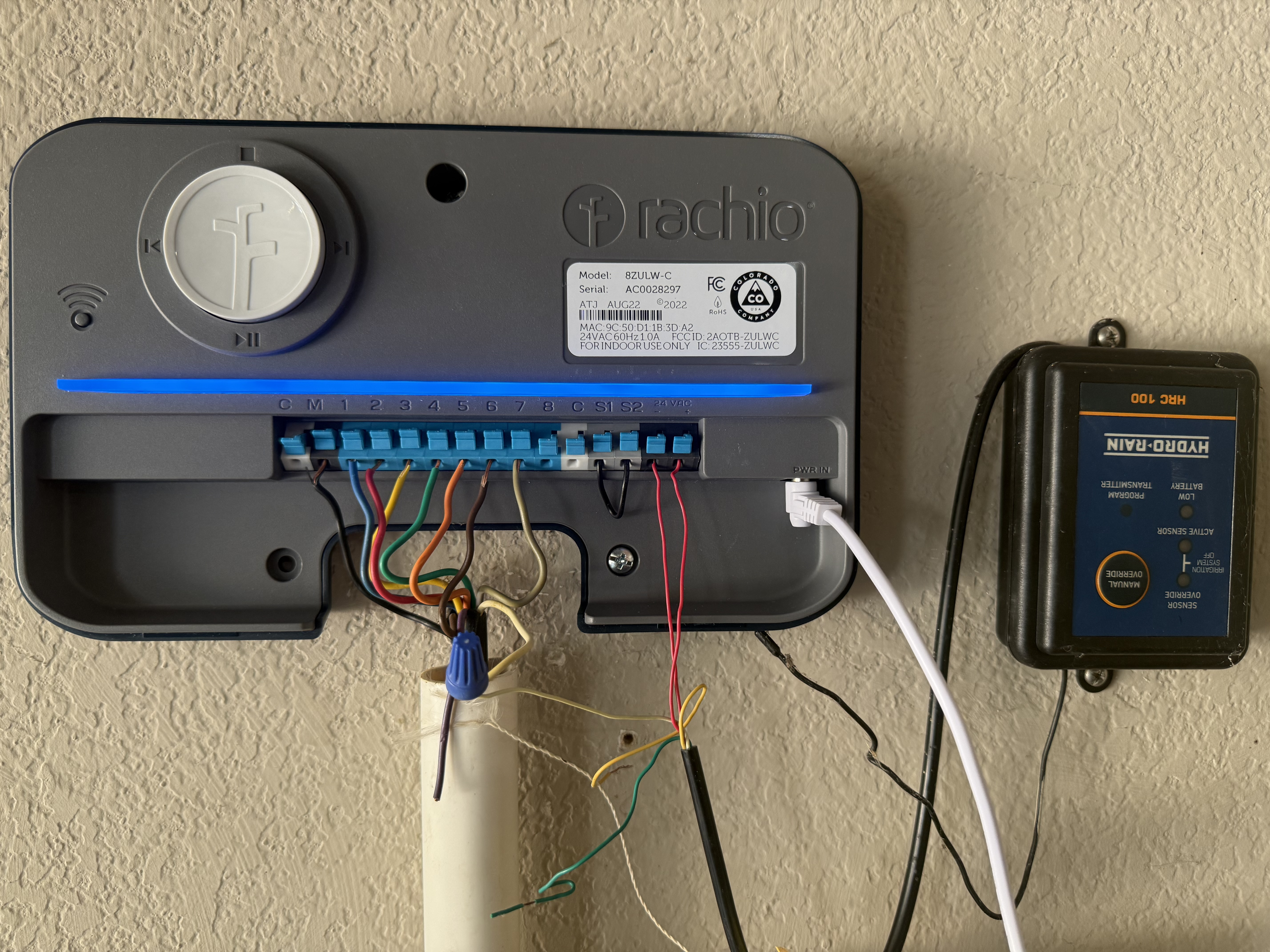

Replaced my weathermatic SL 800 with a Rachio 3 - see wiring pictures of before and after. None of the zones will water. What am I doing wrong?
It looks like you have a master valve did you enable that in your app? It also looks like you have a sensor. It gets hooked up very differently than the old controller. I would suggest getting it working with out that and usually people do not use the sensor with the weather intelligence from what I have seen. It also looks like nothing is hooked up to common, which is required. I cannot look closely right now, but it appears you have brought over a jumper, which should not be.
@Asad726 - As @Thomas_Lerman pointed out removed the black jumper between S1 and S2.
Let’s get it working with out the Hydro Rain device and then determine if you want add the Hydro Rain device back into the system later. To do this, I think the white wire with the blue wire nut is the common wire to the solenoids, so I’d place that in the Rachio C terminal. Leave the small yellow wire from the Hydro Rain device disconnected for now (I think it will eventually go to the S1 terminal).
1 Like
Thank you, so much! This fixed the issue!
2 Likes
Thank you for taking a look!
